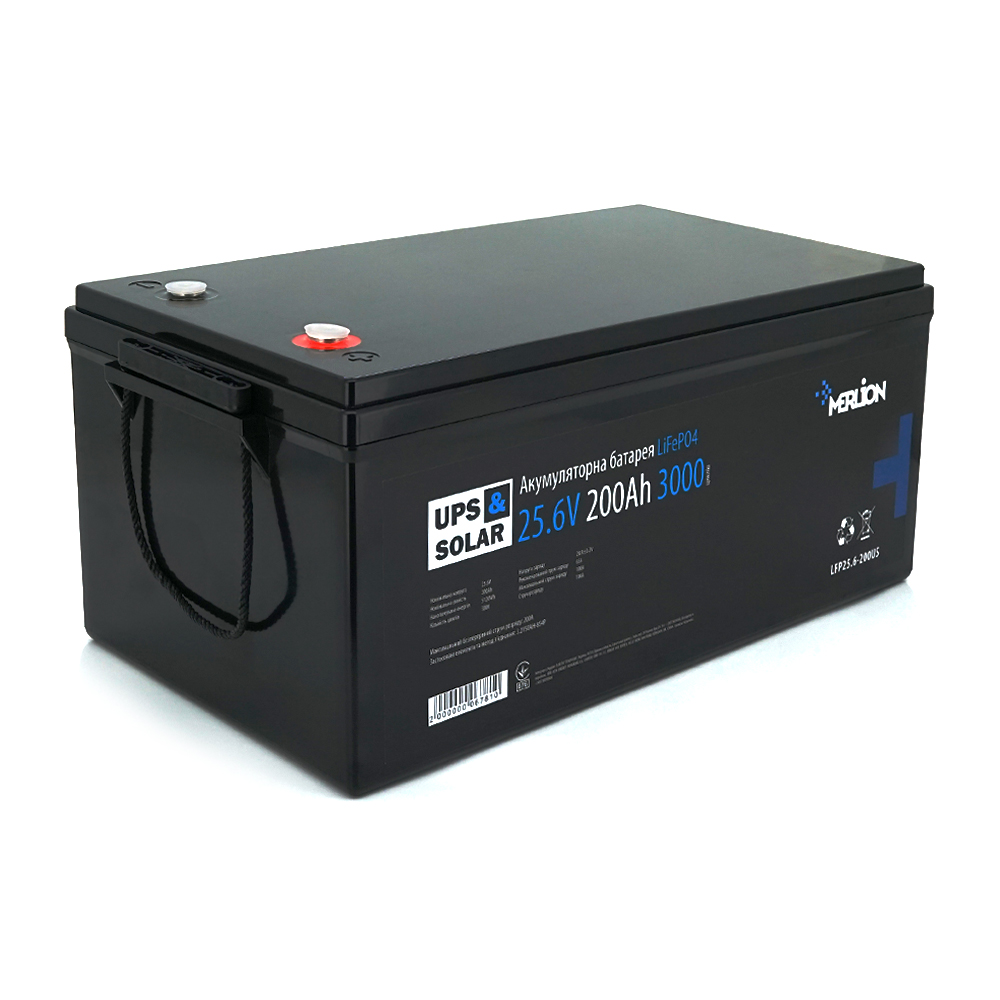

Lithium iron phosphate battery Merlion LiFePO4 25.6V 200AH (8S1P / BMS-100A), (522x268x218), 35kg up to 5000 cycles
Manufacturer
MERLION
Артикул: LFP25.6-200US-ML
In stock
Buy in 1 click
48906,00 грн.
Delivery
Self-pickup
By courier in Kyiv - by arrangement.
In Ukraine - according to the carrier's rates center;">(Free delivery when ordering for
from 3000 UAH. for some product groups)
Guarantee
Exchange/return of goods within 14 days
Official warranty from
manufacturer
Cash, non-cash (including VAT).
PrivatBank, Oschadbank
This powerful battery provides you with a reliable power solution with a wide range of applications and an included battery management system (BMS) for safety and durability. Here are its key features: Features:• Nominal Voltage: 25.6V• Nominal Capacity: 200Ah (at 25°C)• Energy: 5120Wh• Internal Resistance: Less than 100mΩ• Discharge-Charge Cycles: < 5000 cycles at 100% discharge and charge with a current of 1C • Self-discharge: Less than 3% per month • Charging efficiency: 96-99% • Discharge efficiency: 100% • Charging voltage: 29.2±0.2V • Charging current: Maximum 40A, maximum charging current 150A • End-of-charge voltage: 29.6V±0.2V • Maximum continuous discharge current: 150A • Maximum pulse discharge current: Up to 450A (<3 seconds) • Temperature range: From -20°C to +60°C under operating and storage conditions • Dust and moisture resistance: Protection from external influences Dimensions and weight: • Dimensions: 522x268x218 mm • Weight: 35 kg Battery management system (BMS): • Current Balancing Current: 150A• Overcharge Protection: 4.25±0.025V with 1 second delay• Overdischarge Protection: 4.15±0.05V• Short Circuit Protection: Protects the external load from short circuit with 250μs delay• Autonomous Working Current: Less than 100μA• Self-Power Consumption: Less than 20μA in sleep mode (the battery is not in discharge mode)• Operating Temperature Range: -40°C to +80°C Application: 1. Alternative Energy: Can be used to store energy from solar panels or wind turbines, providing continuous power supply in remote areas or as a backup power source. 2. Electric Vehicles and Motorcycles: Ideal for use in electric vehicles due to its high capacity and long service life. 3. Backup Power: Can be used as a backup power source for home, office, or critical systems such as medical equipment. 4. Industrial: Suitable for use in industrial applications requiring a stable and reliable power supply. The Merlion lithium iron phosphate battery is a reliable solution for a variety of power needs, providing a long lifespan and high efficiency with a built-in battery management system (BMS) for safe operation.
