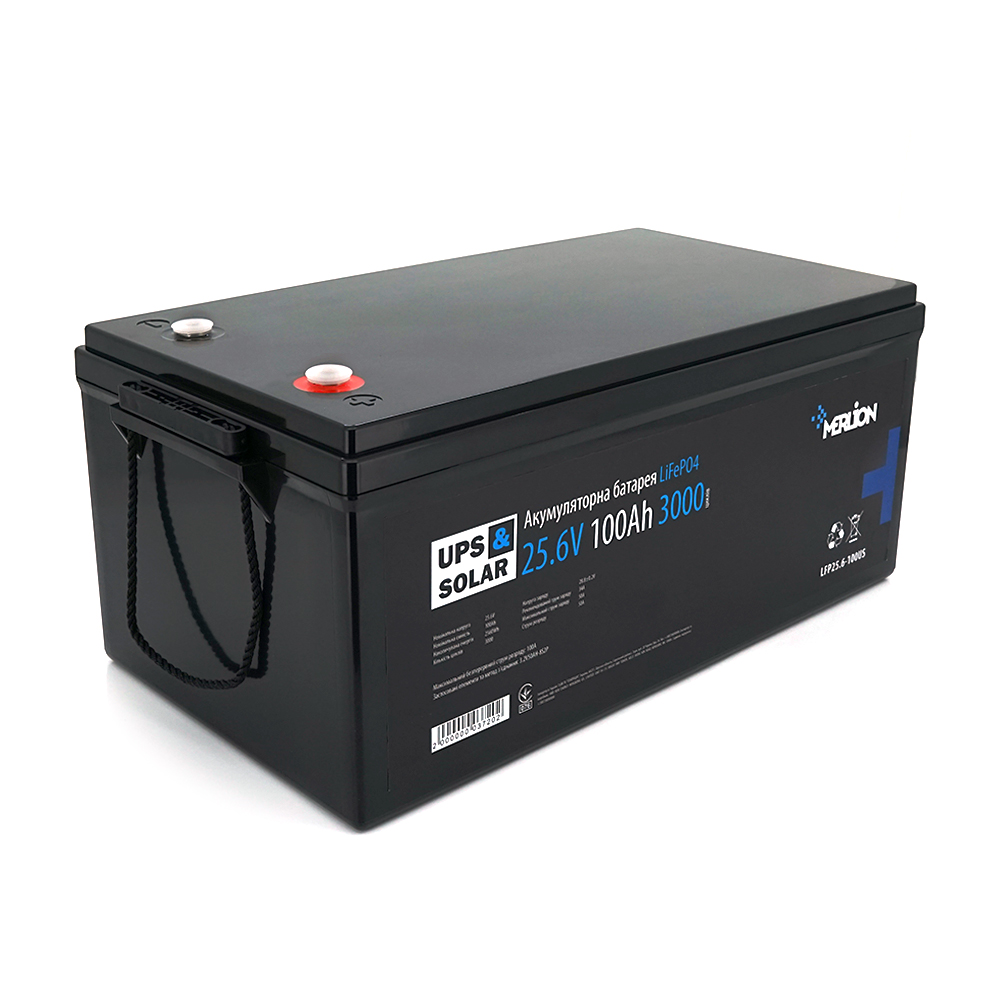

Lithium iron phosphate battery Merlion LiFePO4 25.6V 100AH (8S2P / BMS-100A), (522x238x225), 19kg up to 5000 cycles
Manufacturer
MERLION
Артикул: LFP25.6-100US
In stock
Buy in 1 click
25565,00 грн.
Delivery
Self-pickup
By courier in Kyiv - by arrangement.
In Ukraine - according to the carrier's rates center;">(Free delivery when ordering for
from 3000 UAH. for some product groups)
Guarantee
Exchange/return of goods within 14 days
Official warranty from
manufacturer
Cash, non-cash (including VAT).
PrivatBank, Oschadbank
This powerful battery provides you with a reliable power solution with a wide range of applications and included Battery Management System (BMS) for safety and durability. Here are its key features: Features: Nominal Voltage: 25.6V Nominal Capacity: 100Ah (at 25°C) Energy: 2560Wh Internal Resistance: Less than 200mΩ Discharge-Charge Cycles: <5000 cycles at 100% discharge and charge with a current of 1C Self-Discharge: Less than 3% per month Charging Efficiency: 96-99% Discharge Efficiency: 100% Charging Voltage: 29.2±0.2V Charging Current: Recommended 20A, Maximum Charging Current 100A End-of-Charge Voltage: 29.6V±0.2V Maximum Continuous Discharge Current: 100A Maximum Pulse Discharge Current: Up to 300A (<3 seconds) Temperature range: From -20°C to +60°C under operating and storage conditions• Dust and moisture resistance: Protection from external influences Dimensions and weight: • Dimensions: 522x238x225 mm• Weight: 19 kg Battery management system (BMS): • Balancing current: 100A• Overcharge protection: 4.25±0.025V with a delay of 1 second• Overdischarge protection: 4.15±0.05V• Short circuit protection: Protects the external load from short circuit with a delay of 250 μs• Autonomous working current: Less than 100μA• Self-power consumption: Less than 20μA in sleep mode (the battery is not in discharge mode)• Operating temperature range: From -40°C to +80°C Application: 1. Alternative energy: Can be used to store energy from solar panels or 2. Electric Vehicles and Motorcycles: Ideal for use in electric vehicles due to its high capacity and long lifespan. 3. Backup Power: Can be used as a backup power source for home, office, or critical systems such as medical equipment. 4. Industrial: Suitable for use in industrial applications that require a stable and reliable power supply. The Merlion lithium iron phosphate battery is a reliable solution for a variety of energy needs, offering a long lifespan and high efficiency with a built-in battery management system (BMS) for safe operation.
