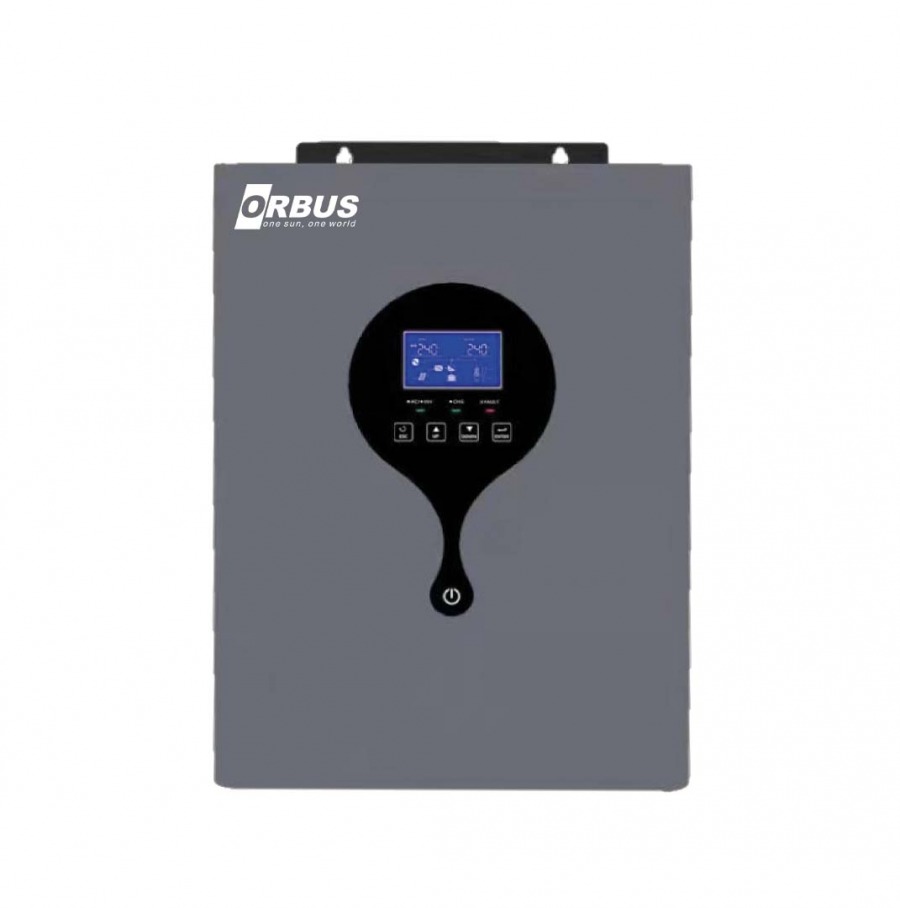

Hybrid inverter ORBUS VMII PRO 3.5 kW, 3500 VA / 3500 watts, 24 V, charging current 0-80 A, 160-275 V, MPPT120-450 (100 A, 500 Vdc)
Manufacturer
ORBUS
Артикул: REVO VM II PRO 3.5KW
In stock
Buy in 1 click
15495,00 грн.
Delivery
Self-pickup
By courier in Kyiv - by arrangement.
In Ukraine - according to the carrier's rates center;">(Free delivery when ordering for
from 3000 UAH. for some product groups)
Guarantee
Exchange/return of goods within 14 days
Official warranty from
manufacturer
Cash, non-cash (including VAT).
PrivatBank, Oschadbank
Hybrid uninterruptible power supply is a high-quality multifunctional device designed to create guaranteed power supply systems for apartments, private houses, cottages and mini-businesses, supplemented by an autonomous power supply function. The built-in LCD display allows you to monitor the system's operation and easily change its parameters, such as: battery charging current, set the priority of the network or an alternative power source, and also set the input voltage range. CHARACTERISTICS: Manufacturer Orbus Model REVO VMII PRO 3.5 kW Country of origin Taiwan UPS type autonomous Number of phases 1 Parallel operation no Charger type from SP MPPT Number of MPPT 1 Efficiency% 93 Interface RS232 / USB Works with a generator: yes Input characteristics of alternating current Input signal shape sine wave Nominal voltage, V 230 Nominal power, W 3500 Output characteristics Nominal power, W 3500Peak power, W (for 5 sec) 7000Output current, A 15Output voltage, V 230Output signal shape sine waveOutput signal frequency, Hz 50 / 60Characteristics of the charger and discharge deviceInput voltage range, V 20-33Nominal voltage, V 24Maximum charging current, A (network + sun) 100Maximum charging current from the network, A 80Maximum battery discharge current, A 145Type of supported batteries GEL / AGM / LEAD / LiFePO4 / Li-ionCooling type activeInput characteristics MPPT (PWM)Nominal power, W 3500Maximum power, W 5000Operating voltage range, V 120-450Input voltage range, V 120-500 Max. open circuit voltage, V 500 Input current, A 18 Dimensions, mm 400 / 300 / 115 Weight, kg 9 Characteristics of the working environment Operating temperature, C 0- +50 Storage temperature, C 0- +50 Protection class IP21
