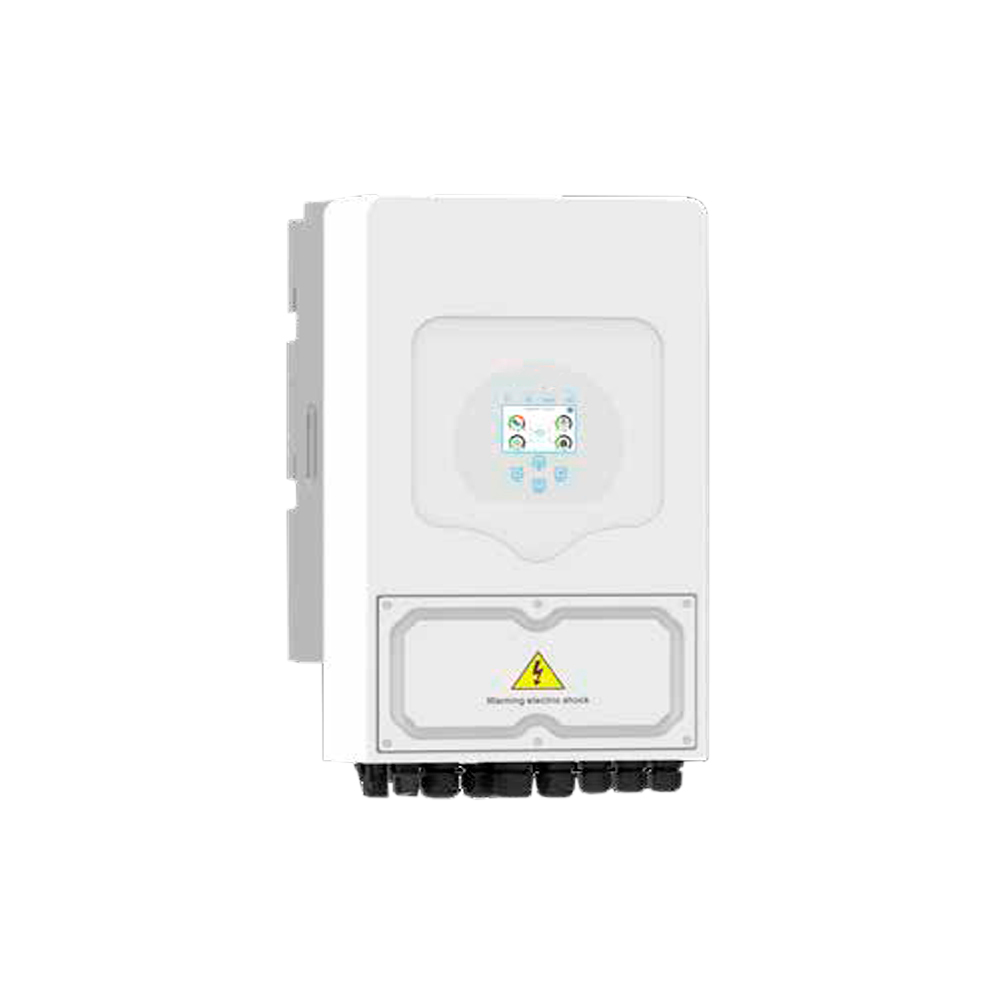

Hybrid inverter (hybrid) Deye SUN-3.6K-SG03LP1-EU, 3.6 kW, single-phase, (MPRT 125-500 / 90A / DC48V)
Manufacturer
Deye
Артикул: SUN-3.6K-SG03LP1-EU
In stock
Buy in 1 click
40850,00 грн.
Delivery
Self-pickup
By courier in Kyiv - by arrangement.
In Ukraine - according to the carrier's rates center;">(Free delivery when ordering for
from 3000 UAH. for some product groups)
Guarantee
Exchange/return of goods within 14 days
Official warranty from
manufacturer
Cash, non-cash (including VAT).
PrivatBank, Oschadbank
SPECIFICATIONS: Manufacturer Deye Model SUN-3.6K -SG03LP1-EU Country of origin China UPS type hybrid Number of phases 1 Operation in parallel yes Charger type from SP MPPT Number of MPPT 2 Efficiency% 97 Interface RS232 USB RS485 wi-fi CAN Work with a generator: yes Input characteristics of alternating current Input signal shape sine wave Nominal voltage, V 230 Nominal power, W 3600 Output characteristics Nominal power, W 3600 Peak power, W (for 5 sec) 3960 Output current, A 22 Output voltage, V 230 Output signal shape sine wave Output signal frequency, Hz 50 / 60 Characteristics of the charger and discharge device Input voltage range, V 40-60 Nominal Voltage, V 48Maximum charging current, A (network + sun) 90Maximum charging current from the network, A 90Maximum battery discharge current, A 90Type of supported batteries GEL / AGM / LiFePO4 / Li-ionCooling type passiveInput characteristics MPPT (PWM) Nominal power, W 4680Maximum power, W 4680Operating voltage range, V 125-425Input voltage range, V 125-500Max. open circuit voltage, V 500Input current, A 13 / 2 Dimensions, mm 330 × 580 × 232Weight, kg 25Characteristics of the working environment Operating temperature, C 0- +50 Storage temperature, C 0- +50Protection class IP65
